PRESSING

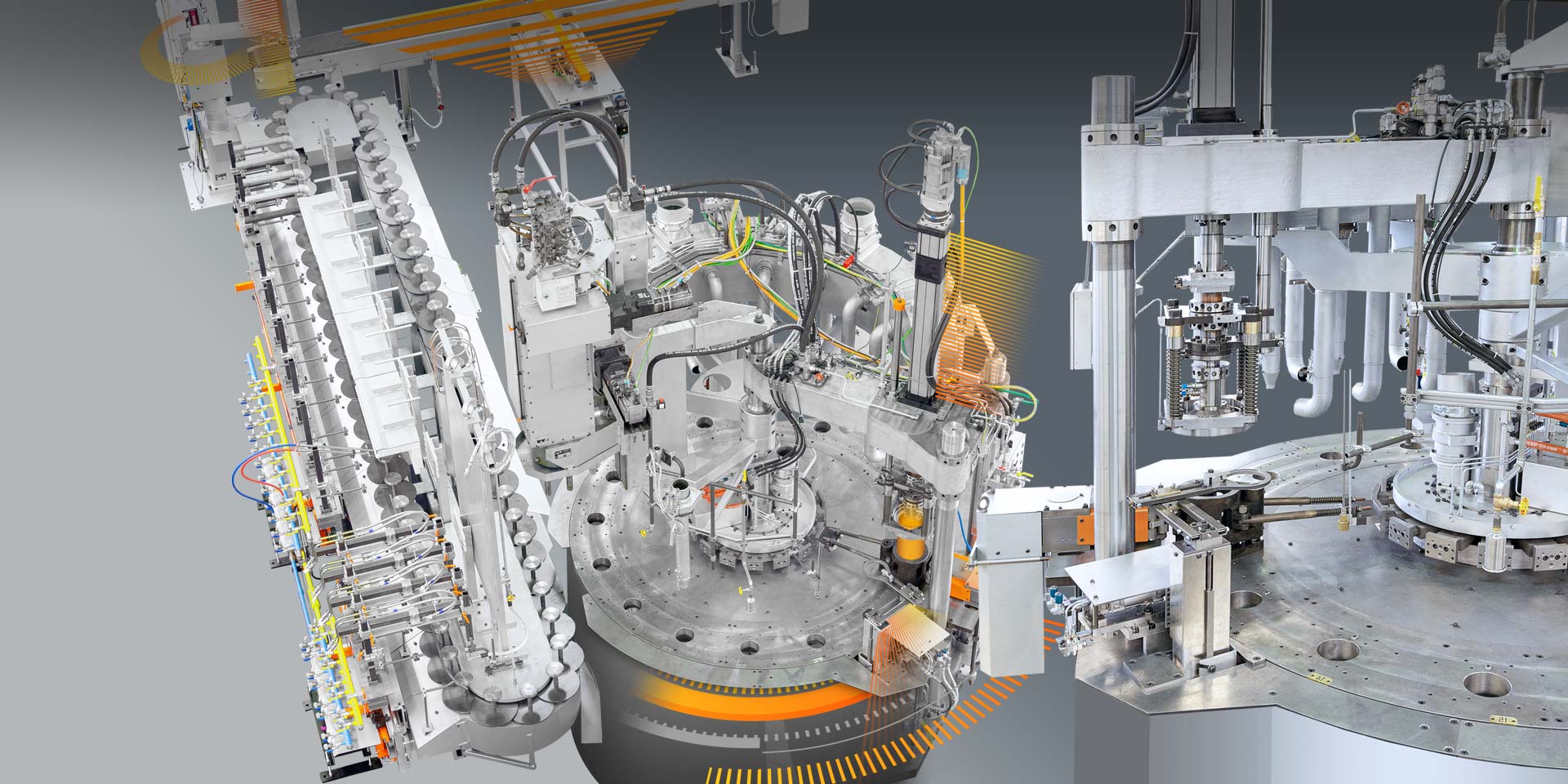

WALTEC supplies presses for every glass article which can be pressed, as well as for all production speeds and capacities.The modular designed glass presses are adjusted to the customer’s predetermined production sequence by using the proven basic machines, and they stand out due to their robust construction.The pressing cylinder has been designed as a controlled servo-hydraulic axis. The pressing procedure can be adjusted with accurate repetition to the respective article by the speed control and pressure regulated pressing curves.The indexing table of the press is time-relay controlled through a servo-regulated direct drive without a gear unit.

number of sections
number of gobs
number of moulds
mould center distance (mm)
pitch circle diameter (mm)
outer diameter of indexing table (mm)
press type GPG

8

SG

8

822,8

2.150

2.650

12

SG

12

608,2

2.350

2.650

16

SG

16

458,5

2.350

2.650

16

SG

16

565,8

2.900

3.300

press type GPT

10

SG

10

571,7

1.850

2.370

press type GPK

12

SG

12

181,2

700

1.000

press type GPE

12

SG

12

401,2

1.550

1.740

12

SG

12

478,8

1.850

2.050

16

SG

16

360,9

1.850

2.150

20

SG

20

289,4

1.850

2.150

12

DG

24

202,3 / 401,2

1.550

1.880

12

DG

24

241,5 / 478,8

1.850

2.050

12

DG

24

280,6 / 561,2

2.150

2.470

12

DG

24

280,6 / 561,2

2.150

2.470

12

TG

36

160

1.850

2.100

12

TG-flex

2.150

2.470

12

QG

48

160

2.450

2.700

SG = Single Gob  | DG = Double Gob  |  TG = Triple Gob |  QG = Quadro Gob

DIRECT DRIVE

For 12 years WALTEC has been using gearless, electric direct drives for the manufacture of glass machines with much success. Due to this reason we have used the direct drive as standard table drive for all high-performance press machines since 2010.

The special design developed by WALTEC (among other things the segmented coils) offers an extremely high operating reliability. WALTEC manufactures these direct drives, as one of their core competences, in-house.

Advantages of the direct drives in this field:

  • high torques of up to 70.000 Nm
  • short table indexing times (up to 0,25 seconds)
  • smooth movements, free from backlash and jolt
  • online drive supervision
  • virtually maintenance-free

Servo hydraulics

Glass producers compensate the permanent cost pressure by higher output and more energy-efficient production lines. The standard hydraulics does not meet these requirements (image 1) any more.

Caused by the design the three-phase motor has to deliver nearly full performance, although it would only be necessary during pressing. Valve indexing times and limited dynamics reduce the necessary process times and thus the production speed.

Electrical press systems, realised via servomotor and recirculating ball screw, are maintenance-intensive, and the mechanic parts are susceptible in comparison with the hydraulics.

The WALTEC engineers have developed the servo pump (image 2). Hydraulics without valves, where its pump/s is/are driven by servomotor.

The resulting high accelerations and speeds do not reach the conventional standard systems. With the WALTEC servo hydraulics the operator has at his disposal considerably longer process times with higher production speeds. Caused by the design the motor power is only needed during pressing, permitting energy-savings of up to 80%.

Also remarkable: The system works without heat exchanger (oil cooler) and only needs approx. 30 liters of hydraulic oil, when having production lines up to 16 tons of pressing force, which means EFFICIENCY PURE.

Pump combination with three-phase motor:

  • constant speed
  • constant sense of rotation
  • full energy requirement throughout the whole year

Pump combination with Servomotor:

  • variable speed
  • reversible sense of rotation
  • minimised energy consumption
