S-Series
Spinning Machines

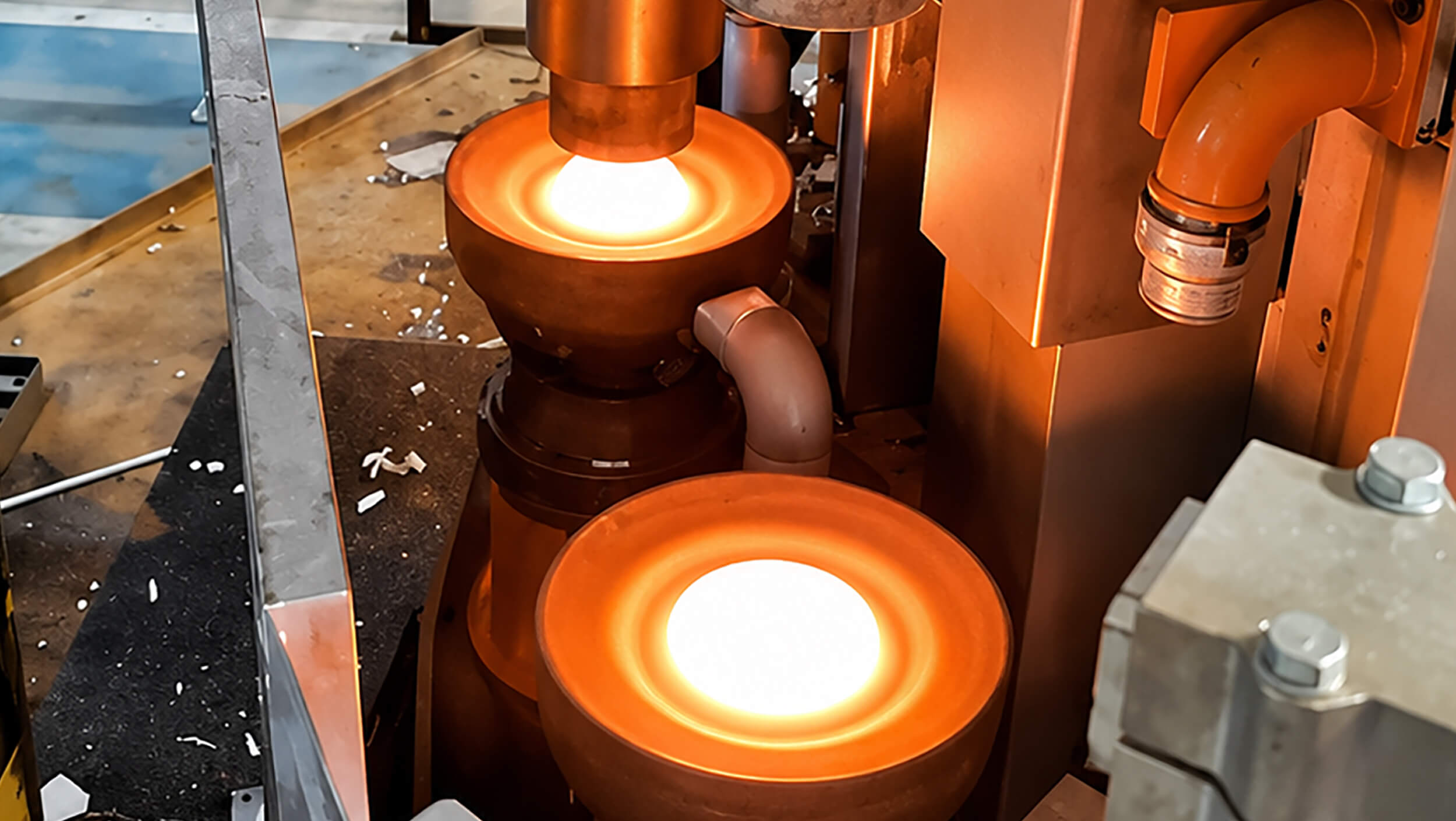

WALTEC’s S-Series combines ESERVO drive technology with flexible, precise glass spinning.
Available with 9, 18 or 24 stations, the machines achieve output rates of up to 90 pieces per minute and can produce up to three different articles simultaneously. Independently controlled spinning spindles, variable gob weights and adjustable speed profiles ensure consistent quality, even for smaller batches. Efficient cooling, operator-friendly controls and synchronized HVC vacuum take-out support continuous production.
With quick changeovers, reduced energy consumption and reliable handling, the S-Series delivers versatile performance for modern tableware and cookware manufacturing – Made in Germany.
S-Series – Production Lines
Variable speed up to 90 pieces per minute
WALTEC’s spinning machines are available with 1, 9, 18 or even 24 stations. A second-to-none sustainable solution for the press-blow process: The Industry 4.0-compliant W-Series offers innovative technology, including energy savings and unprecedented process accuracy and repeatability, leading to a new level of process efficiency. Discover industry-leading solutions and quality made in Germany from WALTEC.
Combined with the linear ESERVO feeder for variable gob weights, the S-SERIES can produce up to three different articles simultaneously.
The process sequence can be configured individually for each article. Acceleration values, variable speed profiles and high-speed stability throughout the production process are ensured by energy-efficient servo drives. This flexibility enables the efficient production of small batch sizes.
All our production lines are designed to meet the economic and environmental requirements of tomorrow’s sustainable glass manufacturing.
Key Benefits
Our production lines
HIGH-CAPACITY SPINNING
S-24
HIGH-CAPACITY SPINNING
S-24
- Servo linear feeder SG with variable gob weight
- Servo-powered S24 spinning machine with option for servo-driven vertical funnel movement
- 8-arm high-speed take-out
- Longitudinal and/or cross conveyor
- Transfer disc
- ESERVO Pusher
HIGH-PERFORMANCE SPINNING
S-18
HIGH-PERFORMANCE SPINNING
S-18
- Servo linear feeder SG with variable gob weight
- Servo-powered S18 spinning machine with option for servo-driven vertical funnel movement
- 6-arm high-speed take-out
- Longitudinal and/or cross conveyor
- Transfer disc
- ESERVO Pusher
COMPACT SPINNING
S-9
COMPACT SPINNING
S-9
- Servo linear feeder SG with variable gob weight
- Servo-powered S9 spinning machine with option for servo-driven vertical funnel movement
- 6-arm high-speed take-out
- Longitudinal and/or cross conveyor
- Transfer disc
- ESERVO Pusher
Spinning Articles
Precision for everyday life
Powered by industry-leading ESERVO drives.
Improved energy footprint
WALTEC’s S-SERIES includes servo drives in every station to guarantee an energy-efficient and precise spinning process. Each spinning spindle can be controlled separately and the vertical funnel movement can be replaced with ESERVO technology.
Dimensions approx. 9,000 x 6,000 mm
Precise control
Stable production.
Precise control.
Intelligent process control and precise, repeatable machine movements ensure reliable production conditions, consistent article quality and efficient operation.
INNOVATIVE TEMPERATURe CONTROL System
Maximized process stability

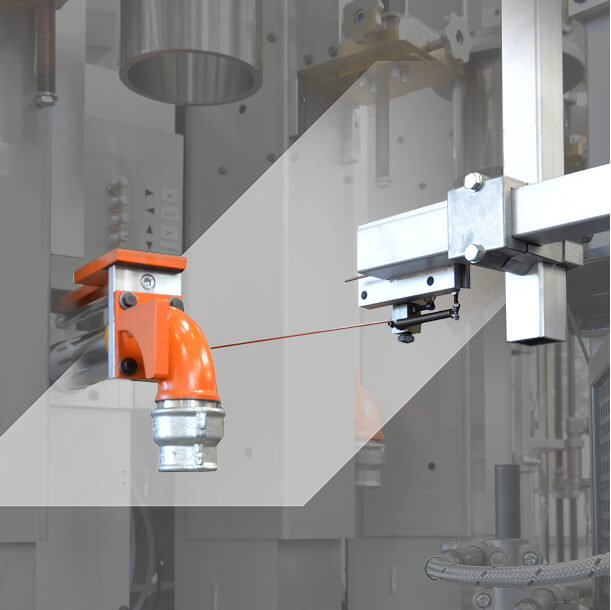

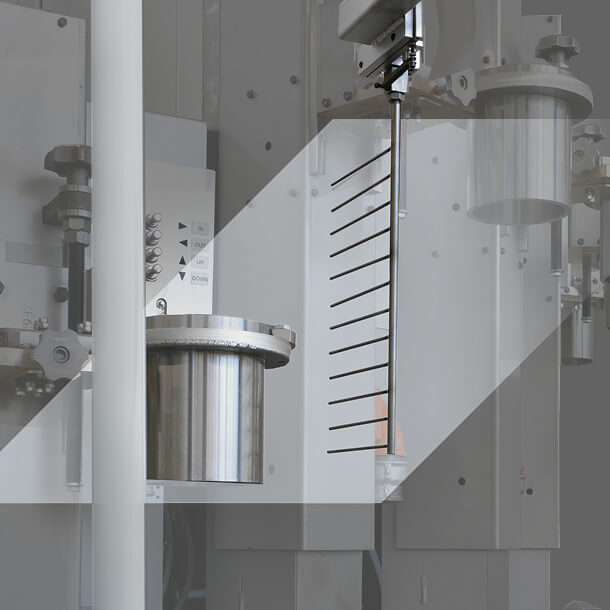

The outstanding linear motion arm assures a fast start of article cooling. The moulds are cooled down sideways by separate adjustable airflow pipes, achieving lower temperatures by highly efficient water cooling or via compressed air.
INTUITIVE USABILITY – OPERATOR-FRIENDLY
Control System

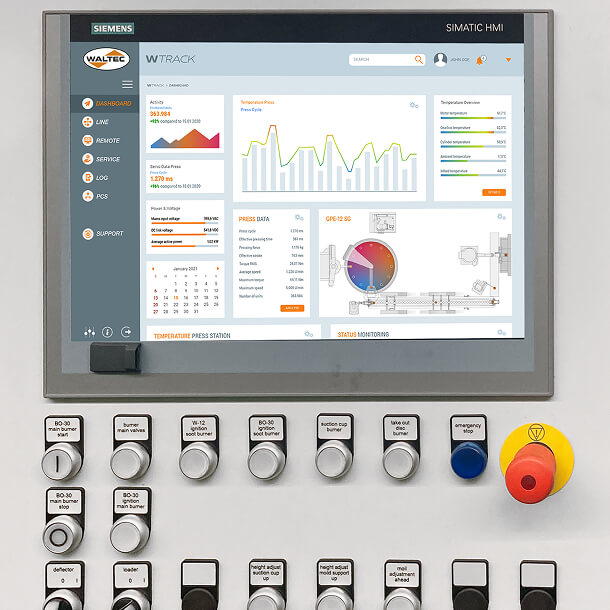

The S-SERIES is easy to handle: An operator-focused control dashboard permits a comfortable setting for all process parameters. Operator safety comes first: Multiple integrated automatic machine stops monitor several positions during the spinning process and, together with emergency stops, help keep production safe and reliable.
FOCUS ON PRODUCTIVITY
Operational safety
In addition to its waterproof and pollution-resistant electronics, the S-SERIES features heavy-duty, water-cooled switch cabinets. The controls are decentralized and placed away from heat and dirt. The central vacuum reduces the noise substantially.
Handling
High-speed handling
Due to our modular design, optimal handling and transfer systems can be planned for all glass articles by choosing a suitable combination based on WALTEC’s standard systems.
