GRIPPER, VACUUM, POSITIONING ACCURACY –

HIGH-SPEED HANDLING

Due to our modular design, optimal handling and transfer systems can be planned for all glass articles by a suitable combination based on the WALTEC‘s standard systems.

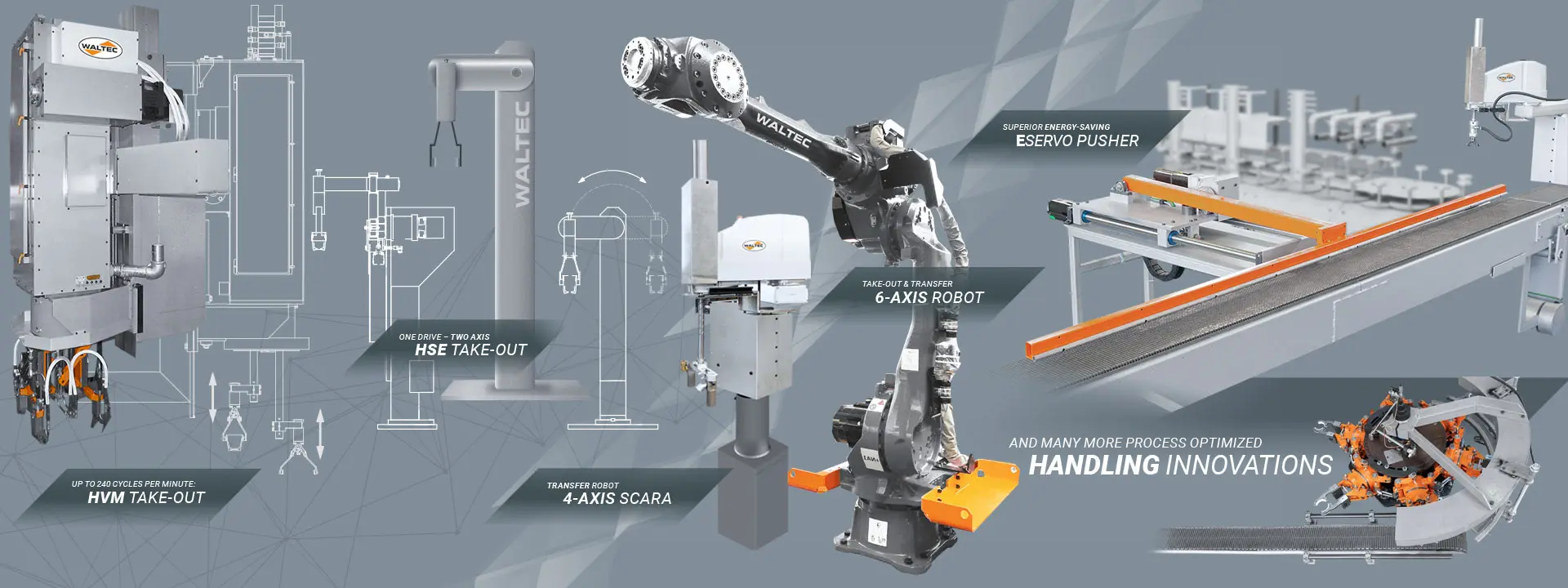

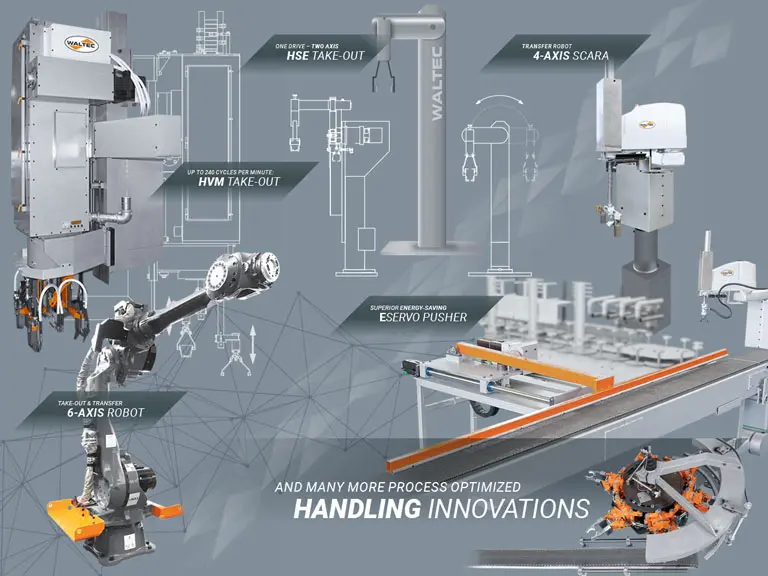

TAKE-OUT AND TRANSFER:

4-AXIS SCARA and 6-AXIS ROBOTS

The possible applications of modern transfer robots are multifaceted in the glass production. In addition to removing articles from the press, reliable positioning between different production sections is always required. The 6-axis take-out and transfer robot from WALTEC is designed for very heavy articles, whereas the 4-axis SCARA robot is suitable for fast and dependable positioning of mediumweight products.

SUPERIOR ENERGY-SAVING:

ESERVO PUSHER

The ESERVO pusher from WALTEC operates with two servos, each one being independently responsible for either horizontal or vertical movement. Pushing articles into annealing lehr with this innovative technology results in higher product quality due to fewer damages and

  • up to 10 m³/h less compressed air,
  • superior repeatability and accuracy,
  • 100% controllable smooth movements
  • and less maintenance.

ONE DRIVE – TWO AXIS:

HSE TAKE-OUT

The HSE take-out with only one servo-drive for vertical and horizontal movement has been developed for gripper or vacuum take-out.

UP TO 240 CYCLES PER MINUTE:

HVM TAKE-OUT

The HVM take-out system is designed for the highest production speeds and maximum flexibility. Two suction heads or gripper arms rotate around a vertical axis. The vertical stroke of the arms is variable in the pick and place position. This eliminates a mechanical adjustment of the pick-up and/or place position on the fire polishing machine for different mould and article heights. The rotating and lifting movements automatically suit to changes in the production speed. In total 3 ESERVO drives are responsible for rotation, pick-up and place position.
